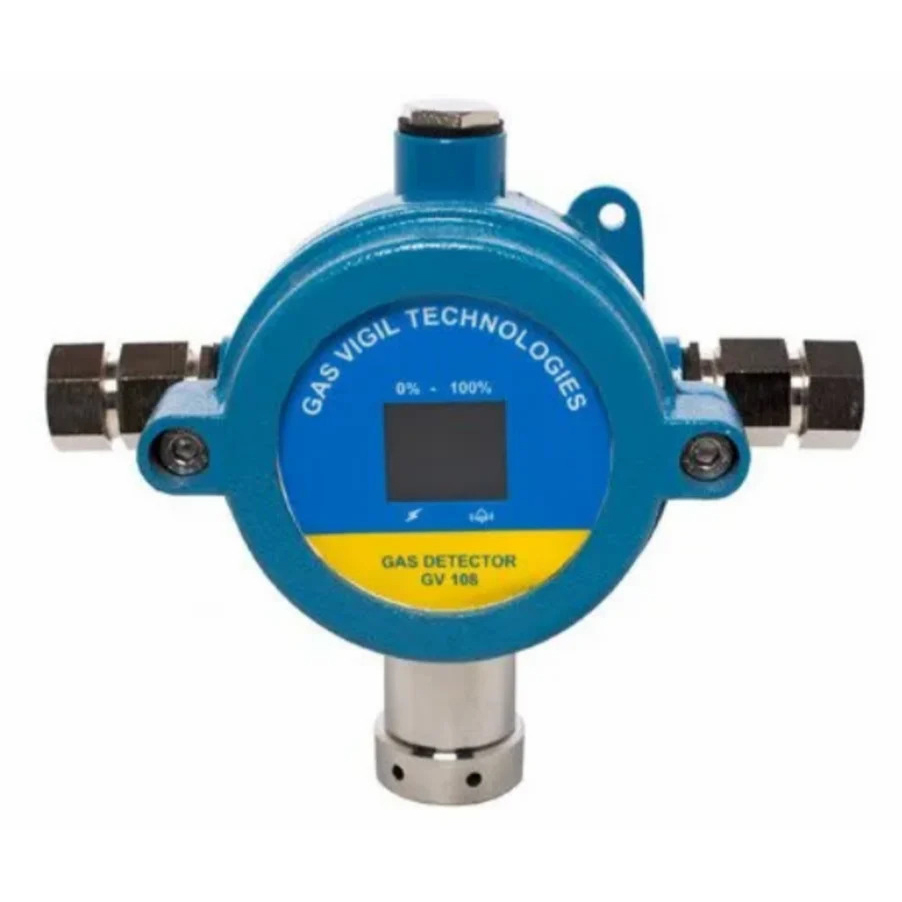

Gas Detector

Gas Detector

10800 INR/Piece

Product Details:

  • Power Supply Electric
  • Product Type Gas Detector
  • Material Metal, Plastic
  • Usage Industrial
  • Voltage 220 Volt (v)
  • Color Differently Available
  • Type Electronic
  • Click to View more
X

Gas Detector Price And Quantity

  • 100 Piece
  • 10800 INR/Piece

Gas Detector Product Specifications

  • 220 Volt (v)
  • Gas Detection
  • Differently Available
  • Electric
  • Metal, Plastic
  • Gas Detector
  • Industrial
  • Electronic

Gas Detector Trade Information

  • 1000 Piece Per Month
  • 10 Days
  • Cardboard box packing available.
  • All India
  • As ISO 9001 : 2008 certified company.

Product Description

We have rich domain experience to manufacture a wide range of GAS Detector in Hyderabad. Our team of skilled and trained professionals uses the supreme quality raw material and other components, procured from the trusted vendors of the market, to make these products. To cater to the clients' demands, these systems are made available in different sizes and other specifications. Based on flame proof modules, GAS Detector are widely used to detect various gases like hydrogen, carbon monoxide, LPG, ammonia and acetylene in different commercial units.

Technical Specifications:

  • Sensing Method: Catalytic combustible
  • Applicable Gas: LPG/LNG/Hydrogen/Acetylene/Ammonia
  • Sensor Operating Voltage: 2 Volt
  • Mounting Method: Foot/Wall
  • Install Distance: Sensor to control 200 meters Max.
  • Input Power Source: 220 Volts AC + 15%, 50 Hz
  • Normal Mode: Green LED ON
  • Activated Mode: Hooter/Siren ON, location Red LED ON
  • Detection Range:  10% of LEL of applicable gas or upwards for selected gas
  • Response Time: 5 Seconds Max

Detection Gas

LPG / PNG/ H2 / C2CH2/ NH3

Range

0-100% LEL

Min Reading

1% Vol

Display Error

-/+3%(F.S)

Transmission Distance

850m

Alarm Point

10%LEL

Working Voltage

DC24 -/+ 3V

Rated Power

2.5W

Output Signal

Digital RS485 Communication

Detection Way

Diffusion

Response Time

<60s

Cable Specification

Four wire system RVVP4*1.0mm2

Working Temp

-10°C~60°C

Working Humidity

10~95%RH

Storage Temp

10°C~40°C

Sensor Type

Pellistor/ Electro chemical

Power Supply

DC7V

Production Grade

Exd IIC T6 Gb

Protection Grade

IP67

Electrical interface

M20*1.5mm2

Way to Install

Fixed bracket/Wall mounting

Weight

0.75kg
