GV09+ Carbon Monoxide Detection System

37850 INR/Piece

Get a Price/Quote

Product Details:

Product Type Carbon Monoxide Detection System
Usage Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GV09+ Carbon Monoxide Detection System Price And Quantity

Price 37850 INR/Piece
Minimum Order Quantity 1 Piece

GV09+ Carbon Monoxide Detection System Product Specifications

Usage Industrial
Product Type Carbon Monoxide Detection System

GV09+ Carbon Monoxide Detection System Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

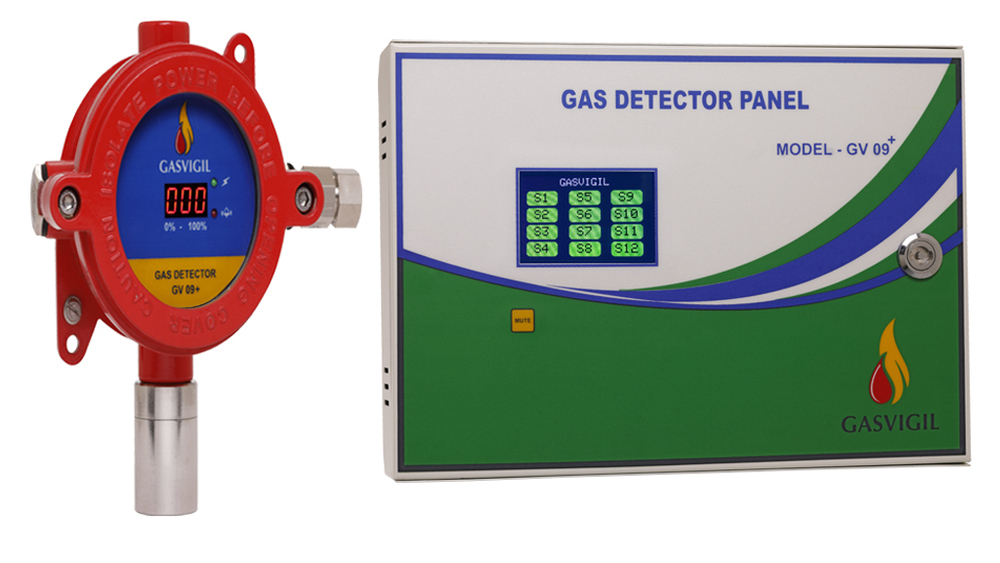

GV09+ Gas Detector with GV09+ Panel ï Smart, Scalable, and Industrial-Grade Gas Detection System

The GV09+ Detector with GV09+ Panel is a cutting-edge gas detection and monitoring solution designed by Gasvigil to ensure the highest level of safety in environments where hazardous gases pose a risk to personnel and property. With its advanced detection capabilities and user-configurable panel system, the GV09+ solution is ideal for both small-scale and large-scale industrial and commercial gas safety applications.

The GV09+ system combines a high-performance GV09+ gas detector with a fully integrated GV09+ control panel, offering a scalable and intelligent gas monitoring infrastructure. The system provides real-time alerts, intuitive display features, and reliable communication between detectors and the central panel for swift action in case of gas leakage or unsafe conditions.

Technical Specifications of GV108 Detector:

Detection Gas	LPG/PNG/H2/C2H2/NH3
Range	0-100% LEL/0-350PPM
Min Reading	1% Vol
Display Error	-/+3%(F.S)
Transmission Distance	850m
Alarm Point	10% VOL
Working Voltage	DC24 -/+ 3V
Rated Power	2.5W
Output Signal	Digital RS485 Comm/4-20mA
Detection Way	Diffusion
Response Time	<60s
Cable Specification	Four wire system RVVP4*1.0mm2
Working Temp	-10C60C
Working Humidity	1095%RH
Storage Temp	10C40C
Sensor Type	Pellistor/ Electro chemical
Power Supply	DC7V
Production Grade	Exd IIC T6 Gb
Protection Grade	IP67
Electrical interface	M20*1.5mm2
Way to Install	Fixed bracket/Wall mounting
Weight	0.75kg

Technical Specifications of GV108 Panel:

No of Detectors	12/16 Addressable Detectors
Display	Colour LCD Display
Network	Single 4 Core Sensor Network
Output	BMS Modbus-Output
Indication	Intelligent Fault Indicator
Switch	Mute Switch
Alarm	High Audible Siren
Records	30 Active Records.
Optional Service	GSM for SMS Alert
