Product Description

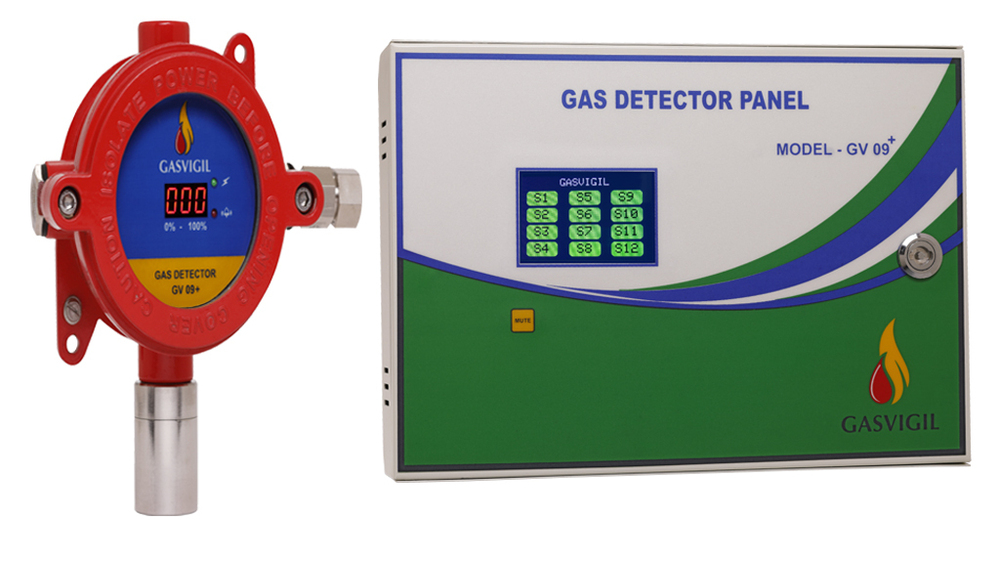

GV09+ Gas Detector with GV09+ Panel ï Smart, Scalable, and Industrial-Grade Gas Detection System
The GV09+ Detector with GV09+ Panel is a cutting-edge gas detection and monitoring solution designed by Gasvigil to ensure the highest level of safety in environments where hazardous gases pose a risk to personnel and property. With its advanced detection capabilities and user-configurable panel system, the GV09+ solution is ideal for both small-scale and large-scale industrial and commercial gas safety applications.
The GV09+ system combines a high-performance GV09+ gas detector with a fully integrated GV09+ control panel, offering a scalable and intelligent gas monitoring infrastructure. The system provides real-time alerts, intuitive display features, and reliable communication between detectors and the central panel for swift action in case of gas leakage or unsafe conditions.
Technical Specifications of GV09+ Detector:
|
Detection Gas
|
LPG/PNG/H2/C2H2/NH3
|
|
Range
|
0-100% LEL/0-350PPM
|
|
Min Reading
|
1% Vol
|
|
Display Error
|
-/+3%(F.S)
|
|
Transmission Distance
|
850m
|
|
Alarm Point
|
10% VOL
|
|
Working Voltage
|
DC24 -/+ 3V
|
|
Rated Power
|
2.5W
|
|
Output Signal
|
Digital RS485 Comm/4-20mA
|
|
Detection Way
|
Diffusion
|
|
Response Time
|
<60s
|
|
Cable Specification
|
Four wire system RVVP4*1.0mm2
|
|
Working Temp
|
-10C60C
|
|
Working Humidity
|
1095%RH
|
|
Storage Temp
|
10C40C
|
|
Sensor Type
|
Pellistor/ Electro chemical
|
|
Power Supply
|
DC24V
|
|
Production Grade
|
Exd IIC T6 Gb
|
|
Protection Grade
|
IP67
|
|
Electrical interface
|
M20*1.5mm2
|
|
Way to Install
|
Fixed bracket/Wall mounting
|
|
Weight
|
0.75kg
|
Technical Specifications of GV09+ Panel:
|
No of Detectors
|
12/16 Addressable Detectors
|
|
Display
|
Colour LCD Display
|
|
Network
|
Single 4 Core Sensor Network
|
|
Output
|
BMS Modbus-Output
|
|
Indication
|
Intelligent Fault Indicator
|
|
Switch
|
Mute Switch
|
|
Alarm
|
High Audible Siren
|
|
Records
|
30 Active Records.
|
|
Optional Service
|
GSM for SMS Alert
|
|
|
|
