GV108 Detector with Panel Detection System

GV108 Detector with Panel Detection System

Name: GV108 Detector with Panel Detection System
Brand: GASVIGIL TECHNOLOGIES PVT. LTD.
Price: 45000.00 INR
Availability: InStock

45000.00 INR/Piece

Get a Price/Quote

Product Details:

Usage Industrial
Operate Method Semi Auto
Product Type Gas Detector
Application Testing & Measurement
Material Metal
Type Electronic
Use Gas Detection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GV108 Detector with Panel Detection System Price And Quantity

Minimum Order Quantity 1 , , Piece
Price 45000.00 INR/Piece

GV108 Detector with Panel Detection System Product Specifications

Product Type Gas Detector
Type Electronic
Application Testing & Measurement
Material Metal
Usage Industrial
Operate Method Semi Auto
Use Gas Detection
Test Medium Gas

GV108 Detector with Panel Detection System Trade Information

Delivery Time 10 Days
Packaging Details Cardboard box packing available.
Main Export Market(s) Asia, Middle East, Africa
Main Domestic Market All India
Certifications As ISO 9001 : 2008 certified company.

Product Description

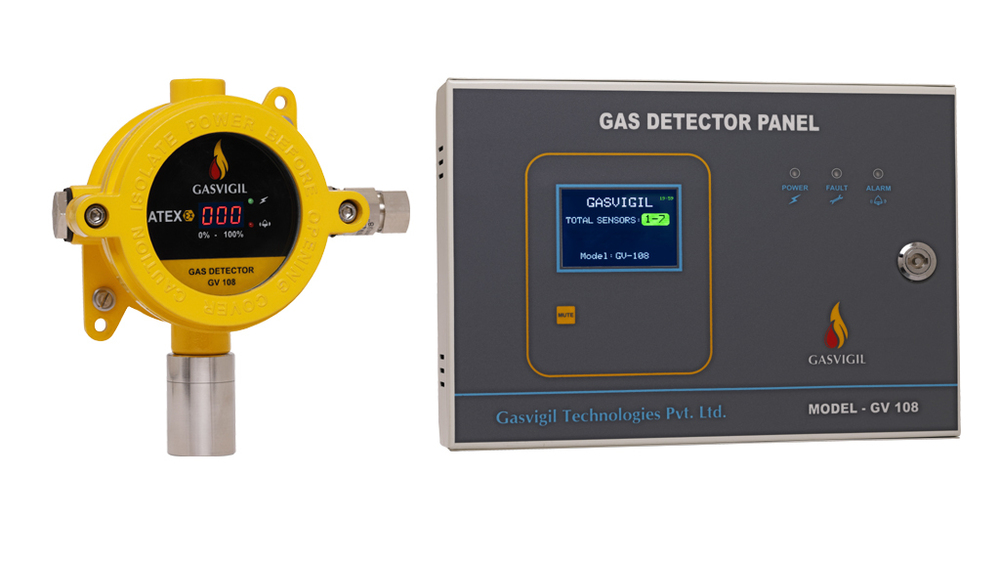

GV108 Gas Detector with GV108 Panel ï Advanced Gas Monitoring & Safety System

The GV108 Gas Detector with GV108 Panel is an advanced, reliable, and user-friendly gas detection solution designed to ensure safety in industrial, commercial, and domestic environments. Developed with precision by Gasvigil, this system offers superior protection by continuously monitoring the presence of hazardous gases and providing timely alerts to prevent accidents and ensure compliance with safety standards.

The GV108 system comprises two integral components ï the GV108 Detector and the GV108 Control Panel. The detector is engineered to sense combustible and toxic gases with high sensitivity and accuracy, while the control panel serves as a centralized interface to monitor and manage all connected gas detectors.

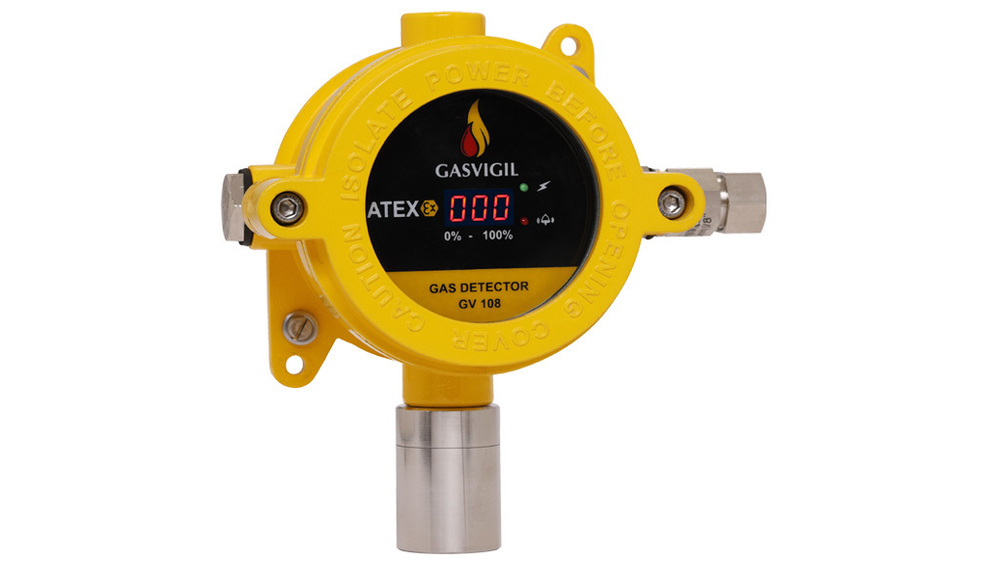

Technical Specifications of GV108 Detector:

Detection Gas	All Gases Available
Range	0-100% LEL/PPM
Min Reading	1% Vol
Display Error	-/+3%(F.S)
Transmission Distance	850m
Alarm Point	Low Alarm: 10% LEL, High Alarm: 30% LEL
Working Voltage	DC24 -/+ 3V
Rated Power	2.5W
Output Signal	Digital RS485 Communication
Detection Way	Diffusion
Response Time	<60s
Cable Specification	Four wire system RVVP4*1.0mm2
Working Temp	-10C60C
Working Humidity	1095%RH
Storage Temp	10C40C
Sensor Type	Pellistor/ Electro chemical
Power Supply	DC7V
Production Grade	Exd IIC T6 Gb
Protection Grade	IP67
Electrical interface	M20*1.5mm2
Way to Install	Fixed bracket/Wall mounting
Weight	0.75kg

Technical Specifications of GV108 Panel:

No of Detectors	60 Addressable Detectors
Display	Colour LCD Display
Network	Single 4 Core Sensor Network
Output	BMS Modbus-Output
Indication	Intelligent Fault Indicator
Switch	Mute Switch
Alarm	High Audible Siren
Records	30 Active Records.
Optional Service	GSM for SMS Alert

Advanced Gas Detection Technology

The GV108 Detector employs cutting-edge electronic sensors to deliver precise gas detection in demanding industrial conditions. Its panel detection system ensures quick response to any potential gas leaks, enhancing workplace safety and operational reliability.

Robust and Versatile Construction

Built with high-quality metal materials, the detector offers increased longevity and resistance to harsh industrial environments. Its semi-automatic operation streamlines the testing process, making it suitable for both large-scale facilities and specialized industrial sites.

FAQs of GV108 Detector with Panel Detection System:

Q: How does the GV108 Detector with Panel Detection System operate in an industrial setting?

A: The GV108 Detector uses semi-automatic electronic sensors to identify gas presence within industrial environments. Users initiate the device, and its panel system provides real-time detection, ensuring prompt alerts and effective monitoring during testing and measurement.

Q: What types of gases can the GV108 Detector identify?

A: This detector is built for various industrial applications and can detect multiple types of gases commonly present in manufacturing, processing, and measurement facilities. The specific sensors are matched to your requirements and can be configured for target gases.

Q: When should the GV108 Detector be used for testing and measurement?

A: The detector is best utilized during routine safety inspections, maintenance periods, or whenever testing and measurement of gas levels is required to comply with safety regulations and prevent hazardous incidents.

Q: Where is the GV108 Detector primarily installed or used?

A: Primarily, the detector is installed in industrial environments such as manufacturing plants, testing laboratories, and facilities where gas detection and monitoring is essential for safety and compliance.

Q: What is the process for maintaining the GV108 Detector?

A: Regular checks and calibration are recommended to maintain detection accuracy. The metal construction allows for easy cleaning, while the electronic system can be serviced by authorized personnel or service providers to ensure optimal performance.

Q: How can exporters, manufacturers, and suppliers benefit from the GV108 Detector?

A: These stakeholders benefit through enhanced safety standards, improved operational security, and compliance with industrial regulations, which can reduce downtime and prevent costly gas-related incidents in their facilities.

Q: What are the main usage instructions for the semi-auto operation method?

A: For semi-auto operation, users need to activate the system manually, after which the detector autonomously monitors gas levels and signals any anomalies on its panel. This provides a balance of user control and automated safety assurance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Gas Leak Detection Systems' category

Gas Leak Detector Price : 18500.00 INR/Piece Minimum Order Quantity : 1 Usage : Industrial Type : Electronic Color : Blue Product Type : Gas Leak Detector Use : Gas Detection Power Supply : Electric Temperature : 20 to +60 Celsius (oC)

Send Inquiry

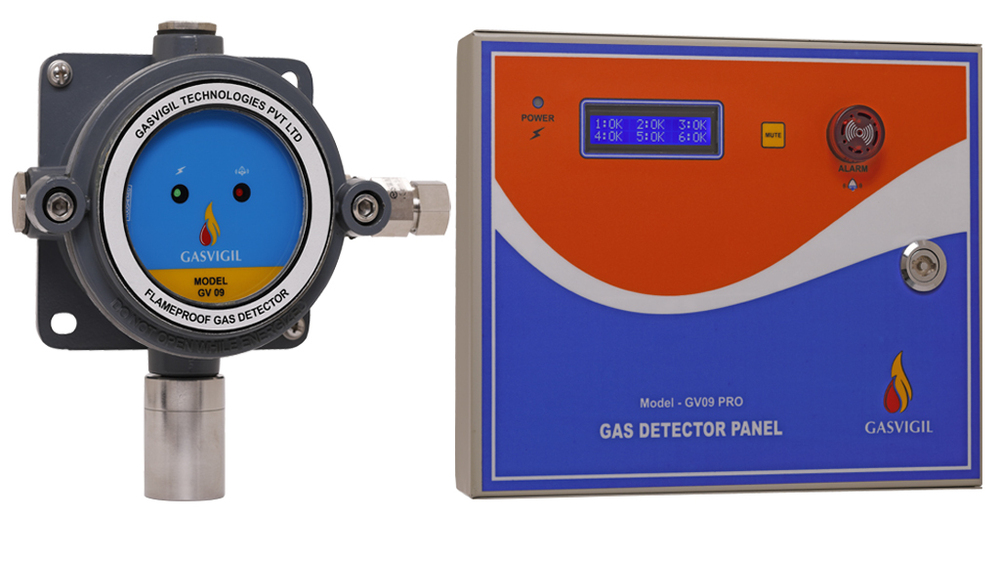

GV09 Gas Detector with GV09 Pro Panel Leak Detection System Price : 11500.00 INR/Unit Minimum Order Quantity : 100 Usage : Industrial Type : Gas Detector Color : Blue Product Type : Carbon Monoxide Detection System Material : Metal, Plastic Voltage : 220 Volt (v)
